Tecnosix TCR 150 is a device for tecar therapy/diathermy.
In the Tecnosix TCR 150 the energy absorbed by the patient is checked by reading an impedance meter and by a series of data that modulate the absorbed current.

Tecnosix TCR150 is equipped with 3 handpieces:

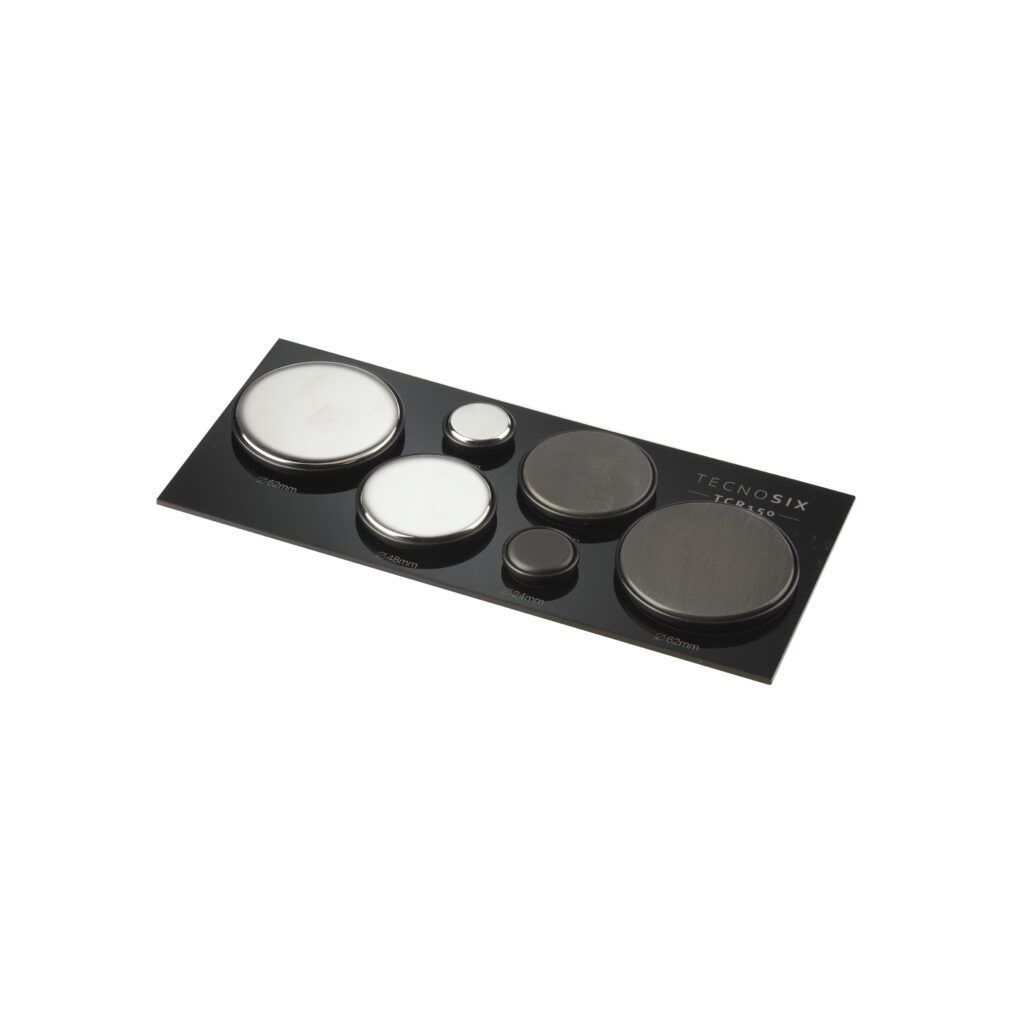

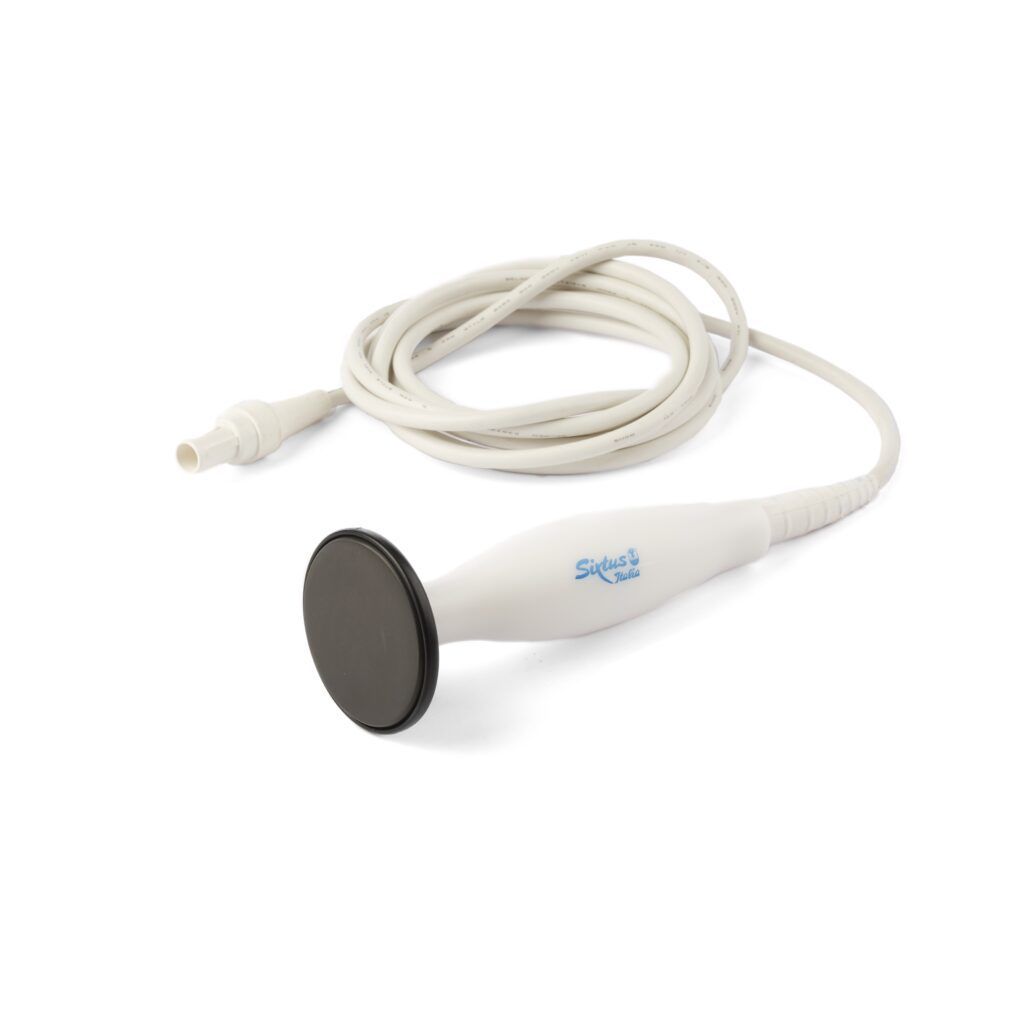

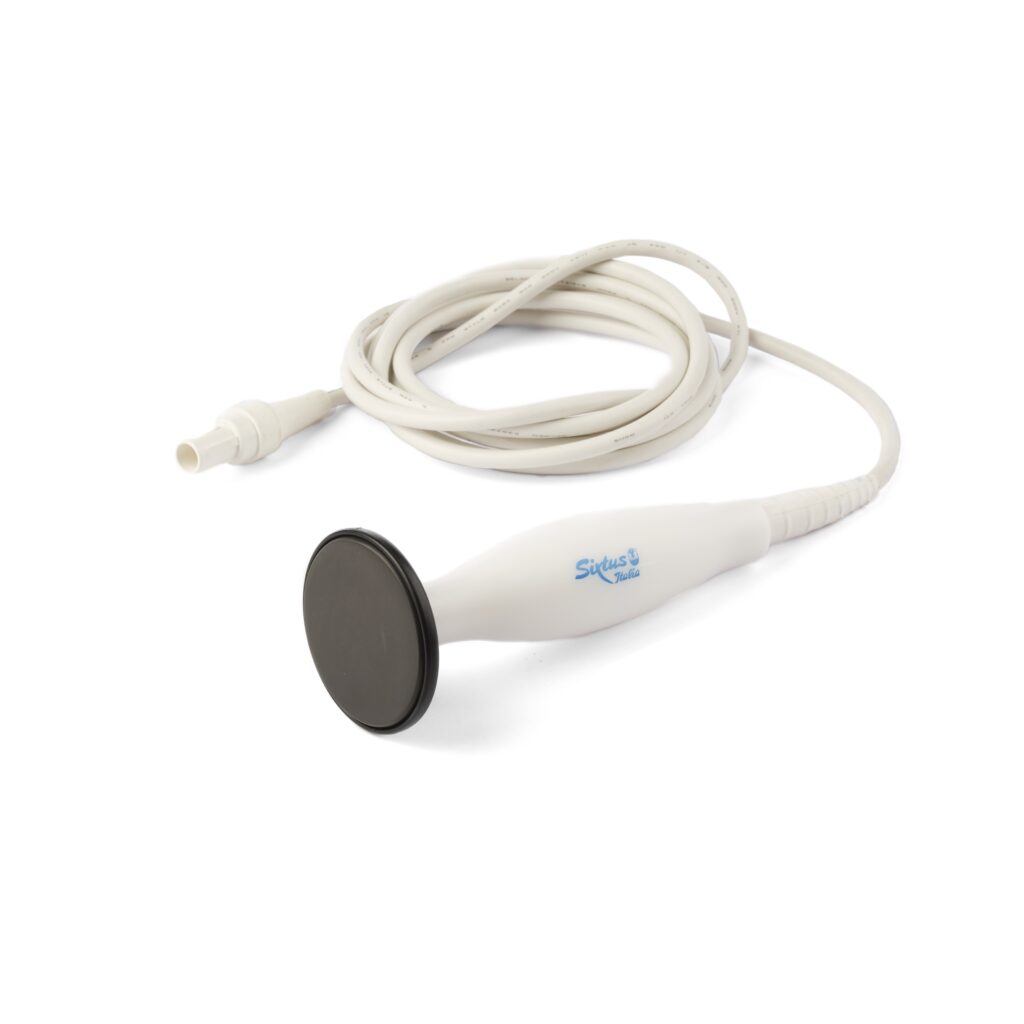

• SINGLE CAPACITIVE RESISTIVE STRAIGHT HANDPIECE  with interchangeable heads (supplied)
• SINGLE CAPACITIVE RESISTIVE HANDPIECE with three working angles and with interchangeable heads (optional)

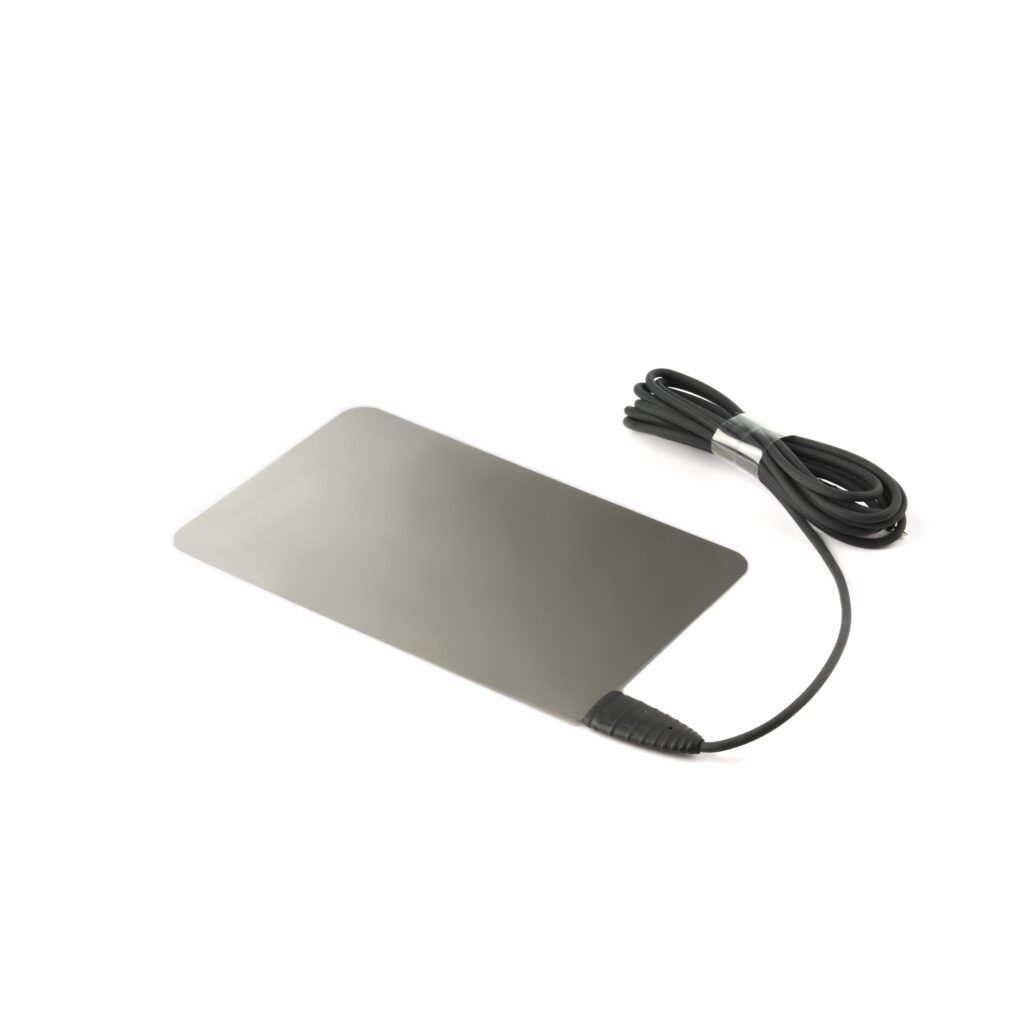

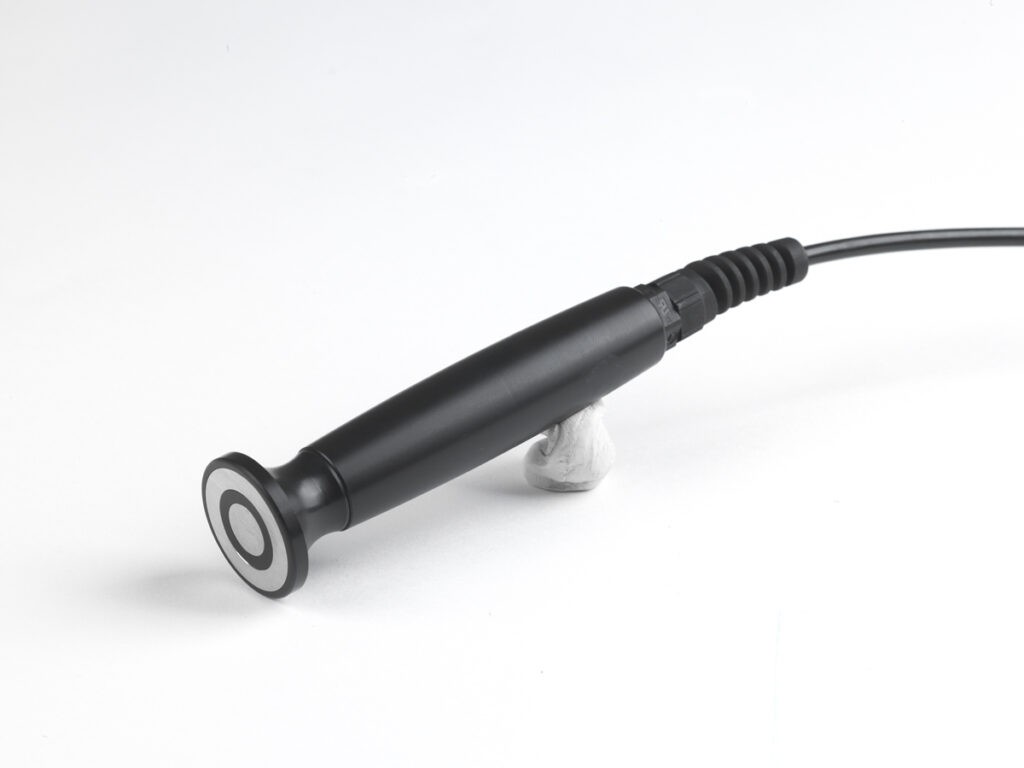

• BIPOLAR HANDPIECE that allows you to work without introducing the return plate as it is already contained in it (optional)

Tecnosix TCR150 allows you to work in 5 different modes

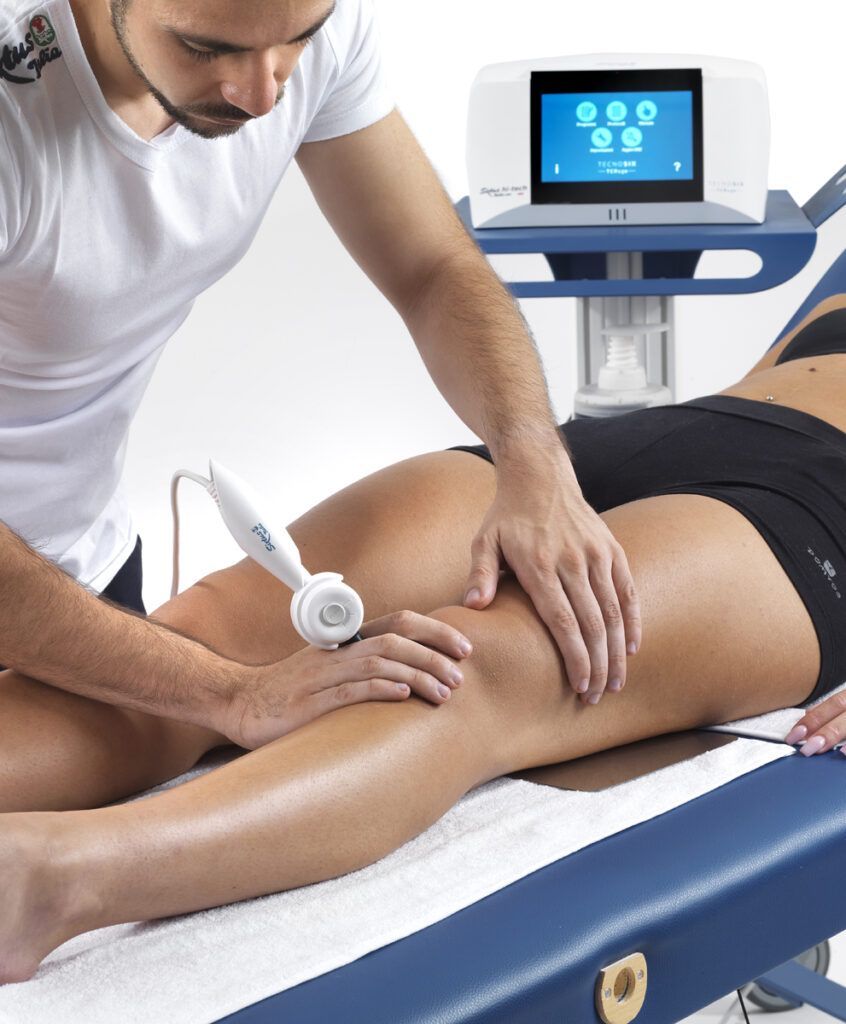

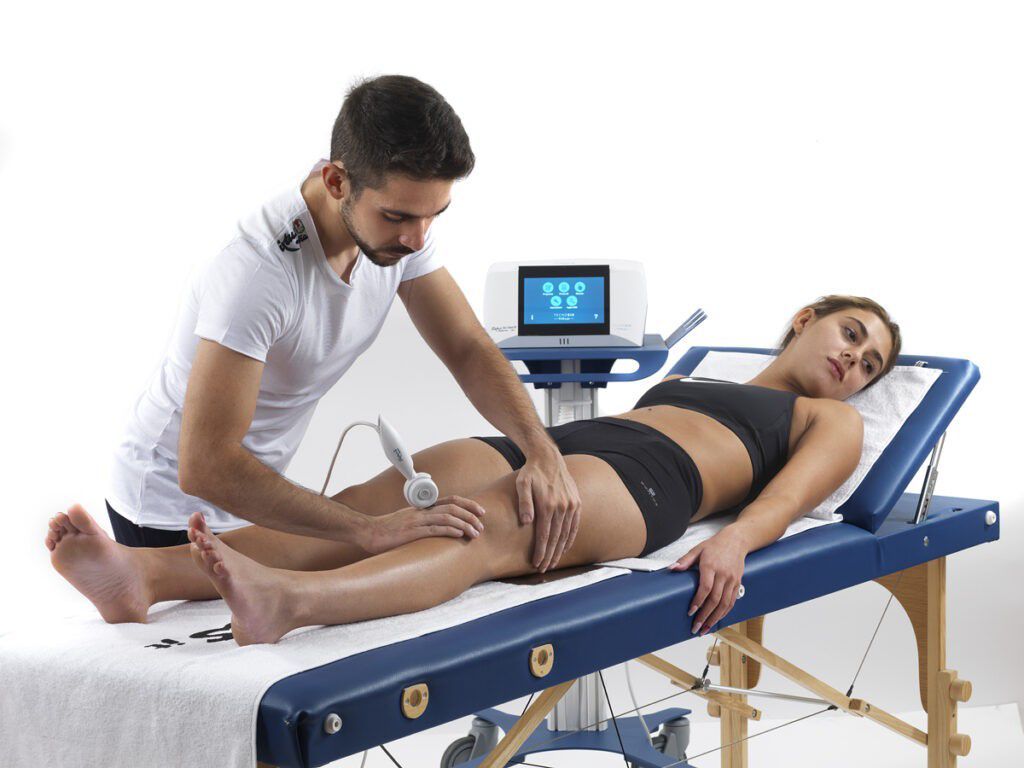

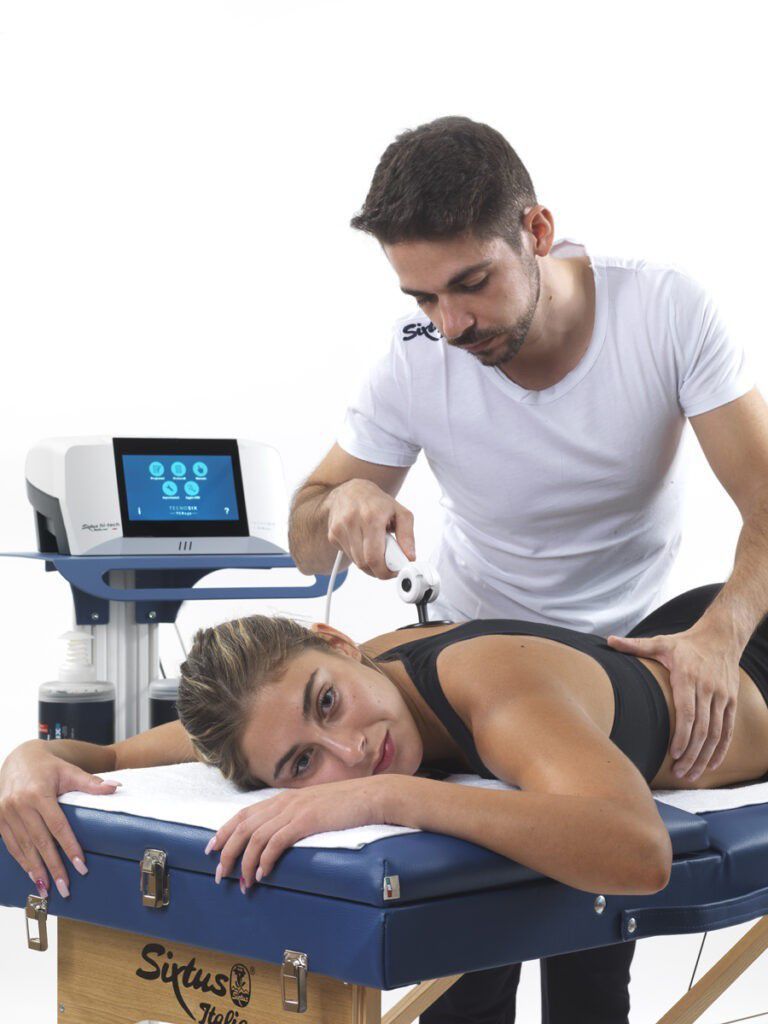

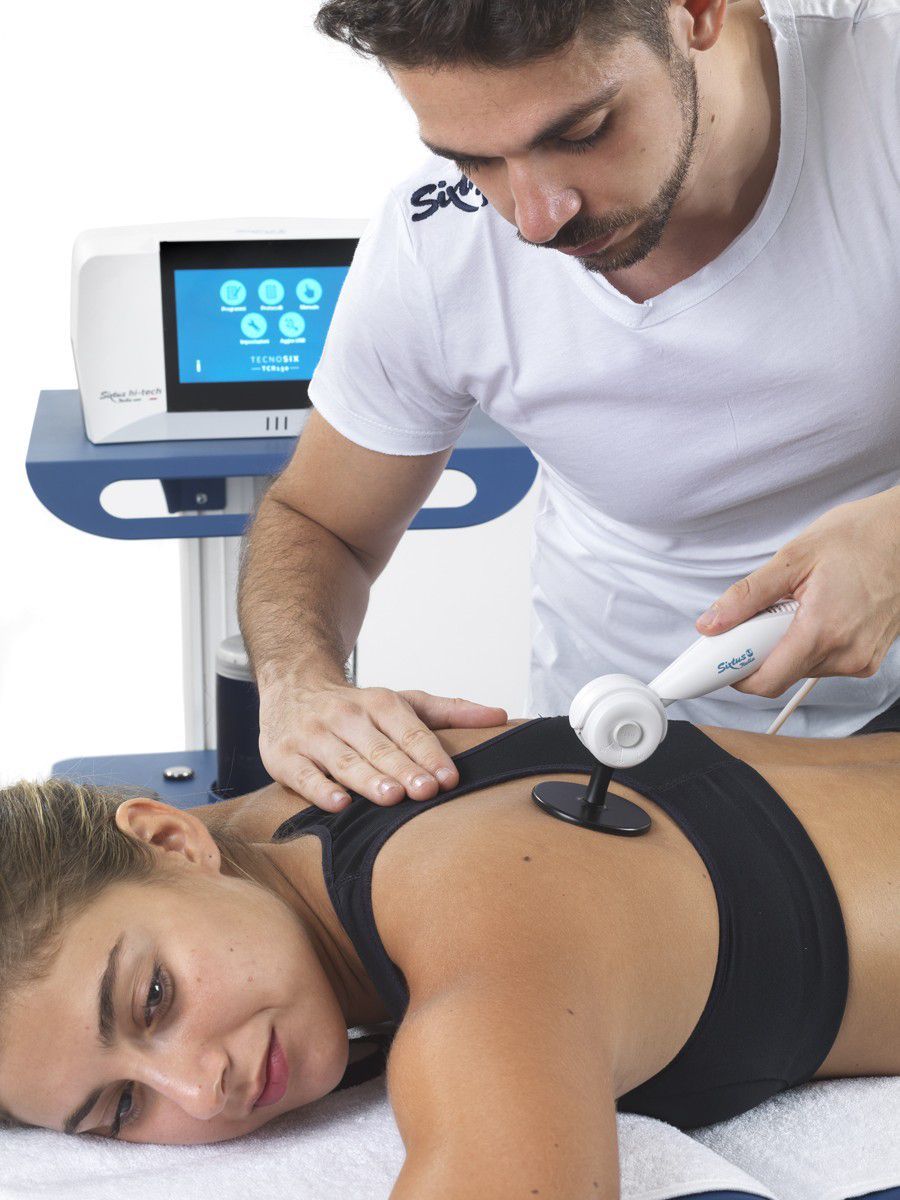

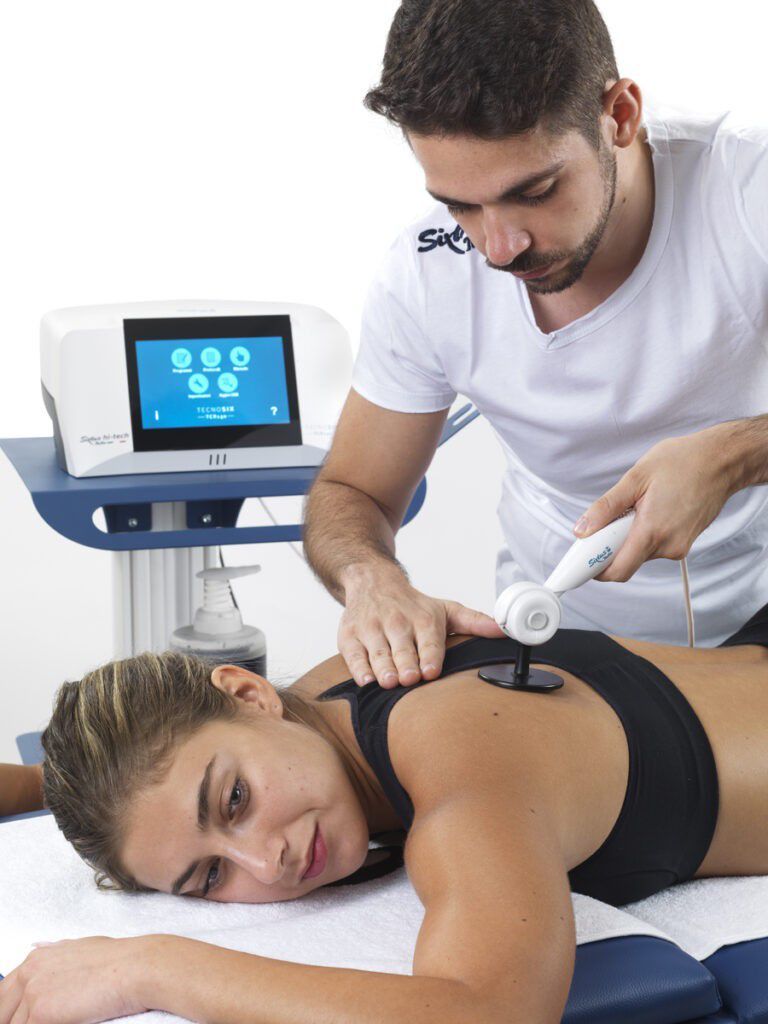

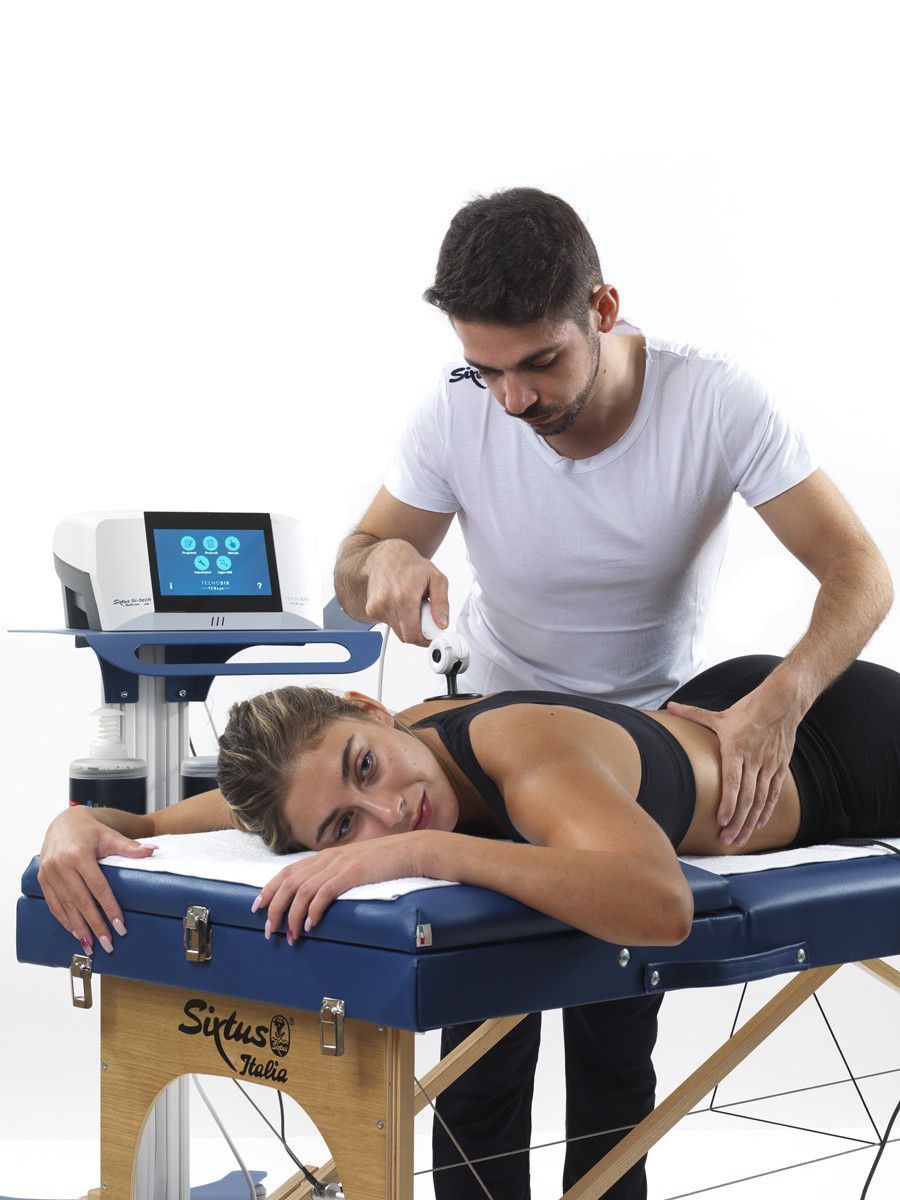

1) Manual Capacitive Resistive Mode
- Ergonomic handpiece with 3 working configurations
- Total and instant energy absorbed reader
- Continuous - Pulsed emission

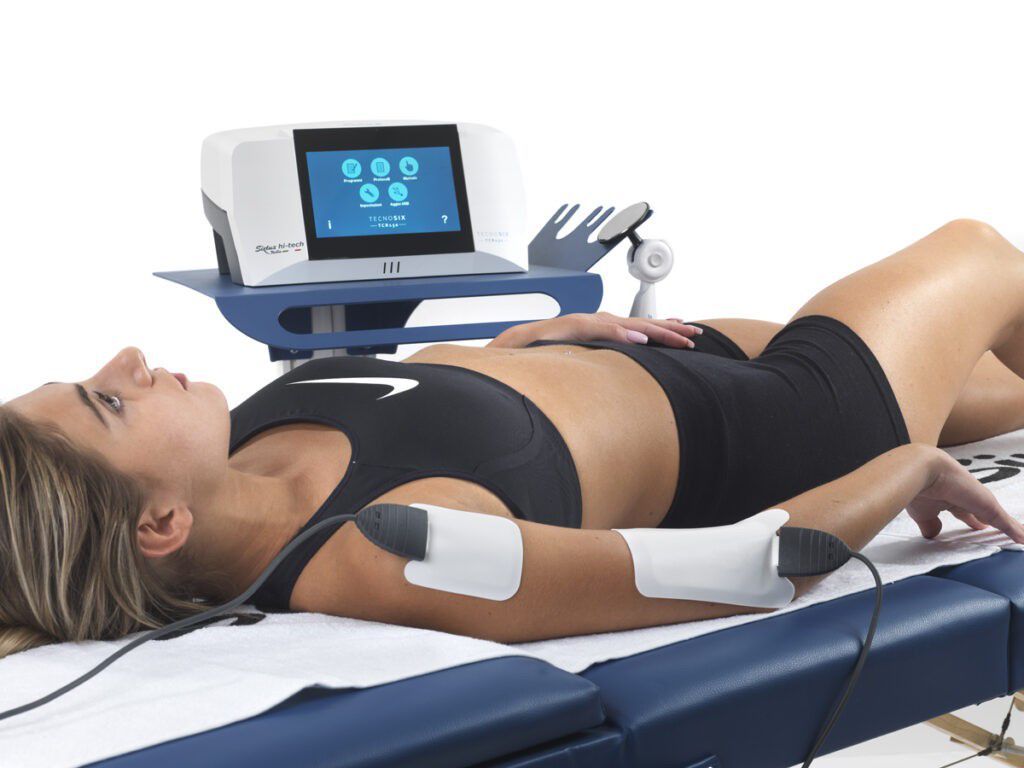

2) Dynamic automatic mode:
- Double gripper for adhesive plates that allow the operator to associate the functional work with the treatment
- Pulsed emission to control the thermal effect

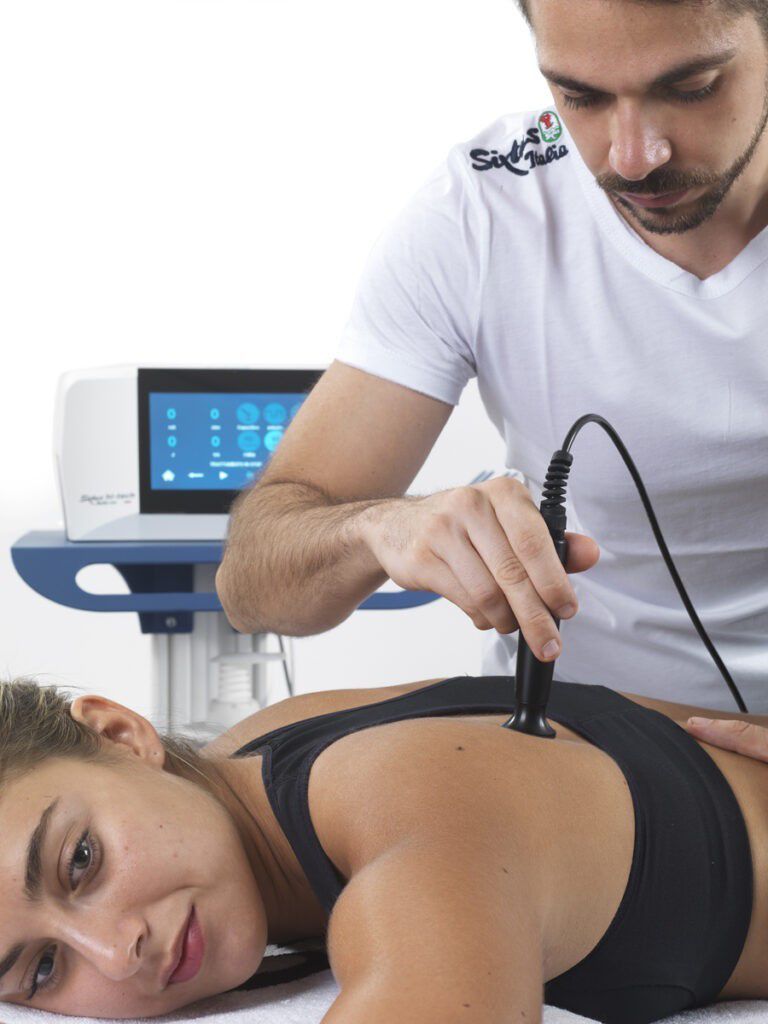

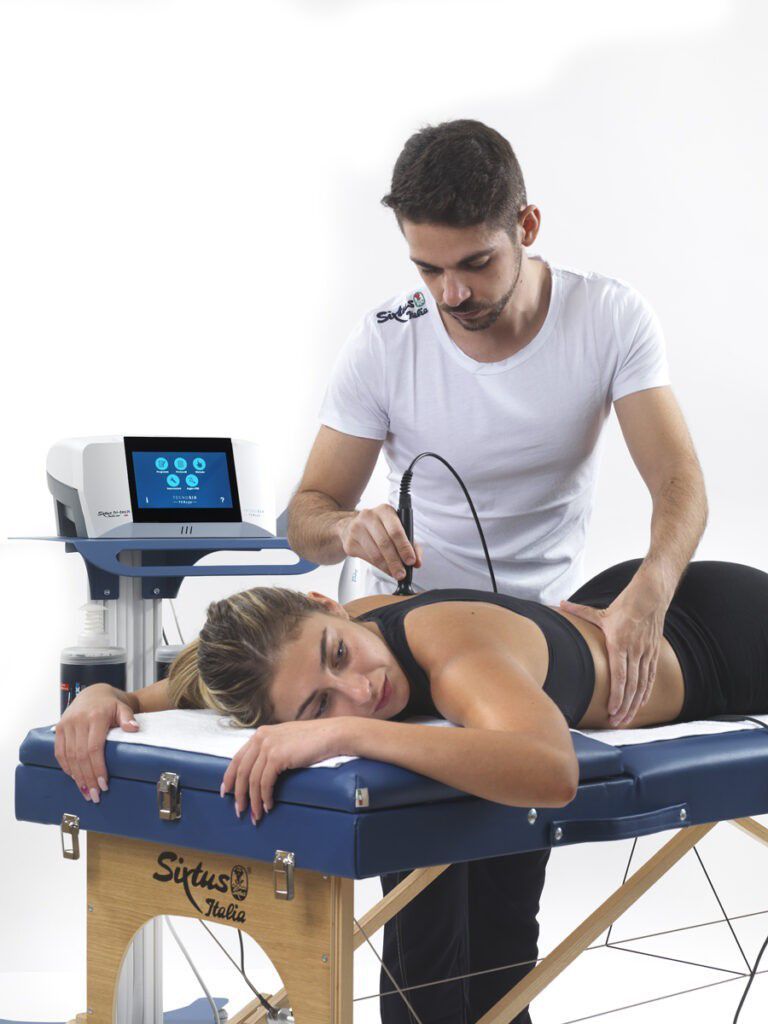

3) Bipolar mode:
- Bipolar resistive handpiece, which allows the use of the classic mode without the use of the return plate
4) Preset Protocols
5) Custom Programs

Specifications:
- Exclusive Design
- New architecture software
- 7 ”capacitive touchscreen display
- 2 mm tempered glass screen
- Updates via USB ports
- Selectable protocols
- Customizable programs
- Security slot security system
- 6 selectable languages

Supplied with:
- 1 cream for the treatment
- 2 pliers and 50 adhesive plates (25 small and 25 large) for automatic treatment
- 1 Capacitive / resistive straight handpiece

Available on request:

•  Trolley for transport
• 1 Capacitive / resistive straight handpiece with 3 working angles
• Bipolar Handpiece

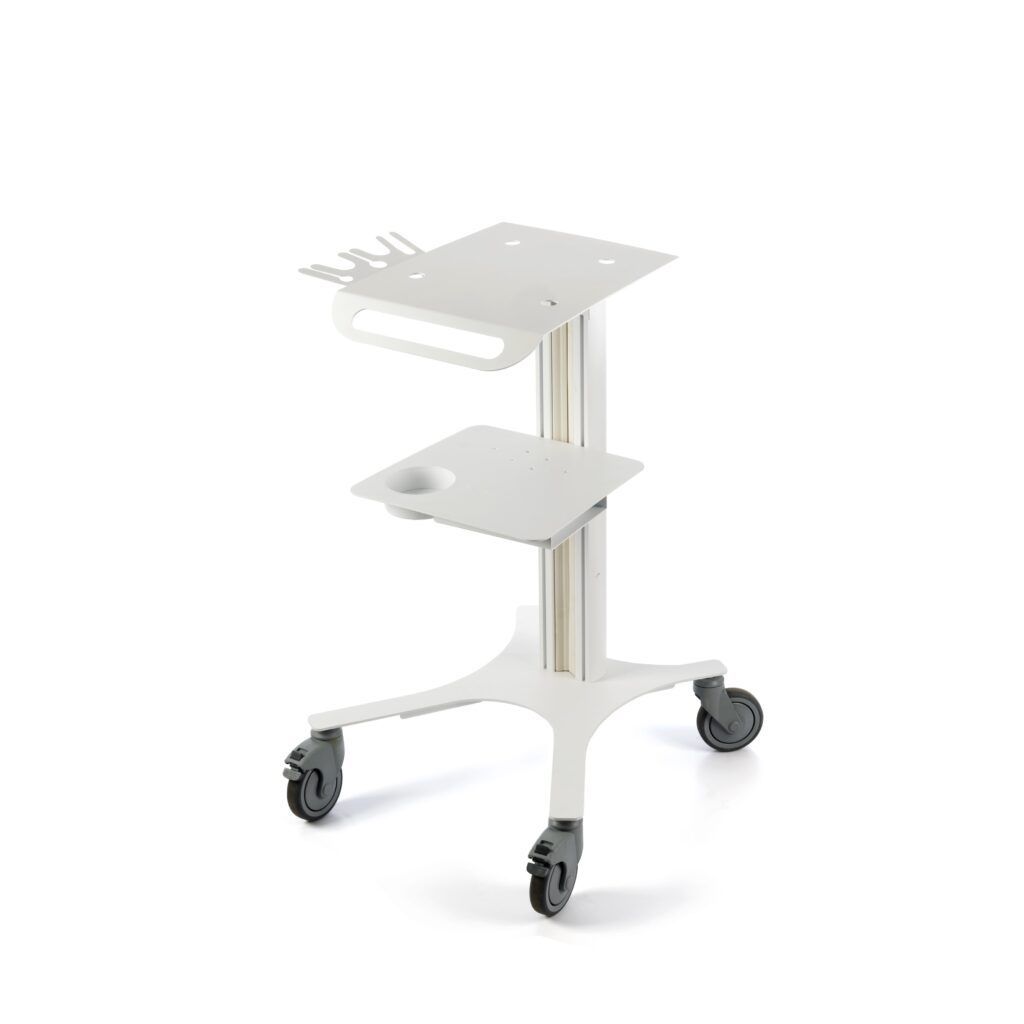

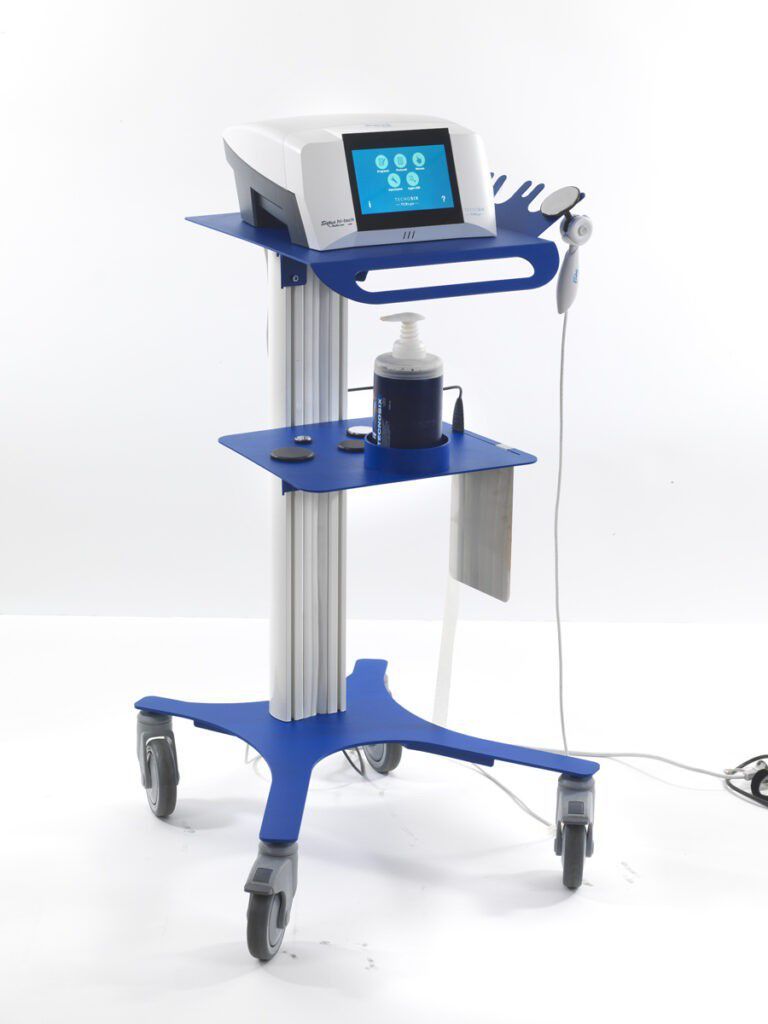

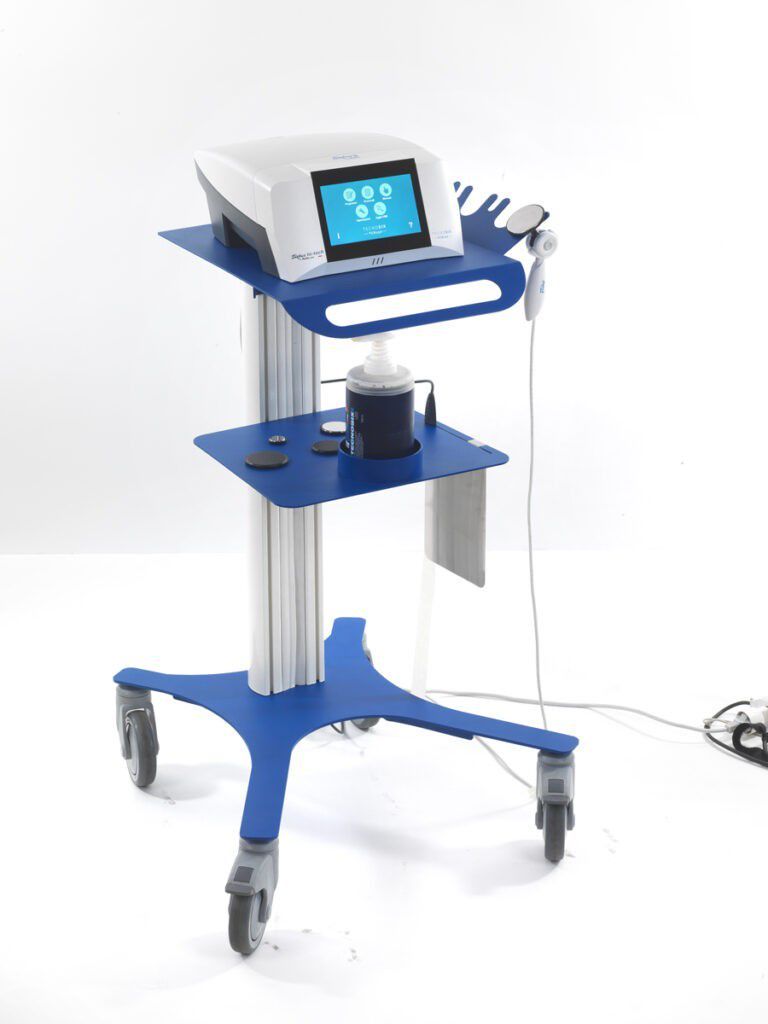

• Trolley with wheels and handpiece holder

• Certificate: CE 0051, Classe II b
• Channel: physiotherapy, sports clubs

• Emission frequencies: 448 MHz  – 550 MHz
• Medical Power Supply: 300 W
• Maximum power: 150W
• Maximum absorbed power: 300 VA
• Power supply 90-240 Vac / 50-60 Hz
• Dimensions in mm: 170 x 315 x 390
• Weight: 5 kg c.a.
• Medical class equipment: II b
• CE 0051
• Certified n. 052/MDR
